This is the complete Hyundai Elantra wiper blade size guide: verified sizes for every generation and model year, the variants each size fits, and how to replace the blades yourself in a couple of minutes.
Hyundai Elantra wiper blade size – quick answer
- Hyundai Elantra (2004–2008): 20" + 18" (500 mm + 450 mm)
- Hyundai Elantra Fluidic (2012–2016): 26" + 13" (650 mm + 330 mm)
- Hyundai Elantra (2016–2020): 26" + 16" (650 mm + 400 mm)
All sizes fit the standard U-hook (J-hook) wiper arm.
Hyundai Elantra wiper blade size by generation
| Generation | Years | Driver side | Passenger side | |
|---|---|---|---|---|
| Elantra (XD) | 2004–2008 | 20" (500 mm) | 18" (450 mm) | Shop |
| Elantra Fluidic (MD) | 2012–2016 | 26" (650 mm) | 13" (330 mm) | Shop |
| Elantra (AD) | 2016–2020 | 26" (650 mm) | 16" (400 mm) | Shop |
Find your model year
- 20" + 18" – Elantra (2004–2008): 2004, 2005, 2006, 2007, 2008
- 26" + 13" – Elantra Fluidic (2012–2016): 2012, 2013, 2014, 2015, 2016
- 26" + 16" – Elantra: 2016, 2017, 2018, 2019, 2020
Variants covered
Wiper size depends on the windscreen, not the trim, engine or fuel – every variant of a generation takes the same blades:
- Elantra (2004–2008): GLS, CRDi
- Elantra Fluidic (2012–2016): S, SX, SX(O)
- Elantra: S, SX, SX(O), AT
How to replace Elantra wiper blades
- Lift the wiper arm away from the windscreen until it locks upright.
- Press the release tab on the U-hook adapter and slide the old blade down off the hook.
- Slide the new blade onto the hook until it clicks into place.
- Lower the arm gently and repeat on the other side with the correct length.
- Test with washer fluid – the glass should be clear in one sweep.
When to replace
Every 6–12 months, or sooner if the blades streak, squeak, judder or leave unwiped patches – especially before the monsoon.
Buy Elantra wiper blades

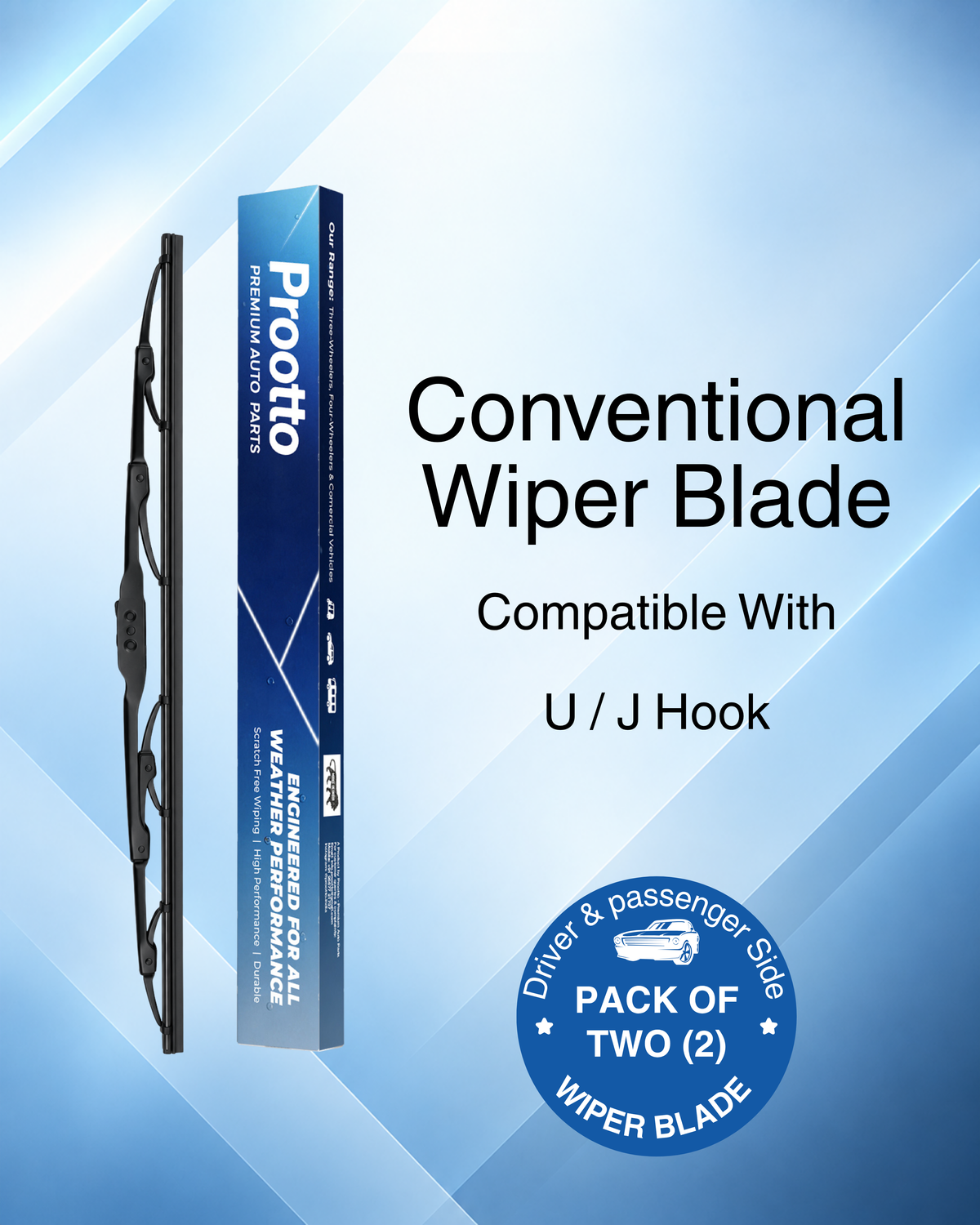

Prootto sells exact-fit sets of two in Conventional, Hybrid, Frameless and Carbon Aero:
- Hyundai Elantra (2004–2008) wiper blades – 20" + 18"
- Hyundai Elantra Fluidic (2012–2016) wiper blades – 26" + 13"
- Hyundai Elantra wiper blades – 26" + 16"
FAQs
What is the wiper blade size of the Hyundai Elantra?
Elantra (2004–2008): 20" + 18" (500 mm + 450 mm). Elantra Fluidic (2012–2016): 26" + 13" (650 mm + 330 mm). Elantra (2016–2020): 26" + 16" (650 mm + 400 mm).
Is the wiper size the same for every Elantra variant?
Yes. Within a generation, S, SX, SX(O), AT and all other variants use the same 26" + 16" blades.
Do these fit the Elantra wiper arm?
Yes – the Elantra uses a standard U-hook (J-hook) arm, and Prootto blades come with the matching adapter.
