This is the complete Isuzu D-Max Single Cab wiper blade size guide: verified sizes for every generation and model year, the variants each size fits, and how to replace the blades yourself in a couple of minutes.
Isuzu D-Max Single Cab wiper blade size – quick answer
- Isuzu D-Max Single Cab (2014–present): 22" + 19" (550 mm + 480 mm)
All sizes fit the standard U-hook (J-hook) wiper arm.
Isuzu D-Max Single Cab wiper blade size by generation
| Generation | Years | Driver side | Passenger side | |
|---|---|---|---|---|
| D-Max Single Cab | 2014–present | 22" (550 mm) | 19" (480 mm) | Shop |
Find your model year
- 22" + 19" – D-Max Single Cab: 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026
Variants covered
Wiper size depends on the windscreen, not the trim, engine or fuel – every variant of a generation takes the same blades:
- D-Max Single Cab: Flat Deck, Cab Chassis
How to replace D-Max Single Cab wiper blades
- Lift the wiper arm away from the windscreen until it locks upright.
- Press the release tab on the U-hook adapter and slide the old blade down off the hook.
- Slide the new blade onto the hook until it clicks into place.
- Lower the arm gently and repeat on the other side with the correct length.
- Test with washer fluid – the glass should be clear in one sweep.
When to replace
Every 6–12 months, or sooner if the blades streak, squeak, judder or leave unwiped patches – especially before the monsoon.
Buy D-Max Single Cab wiper blades

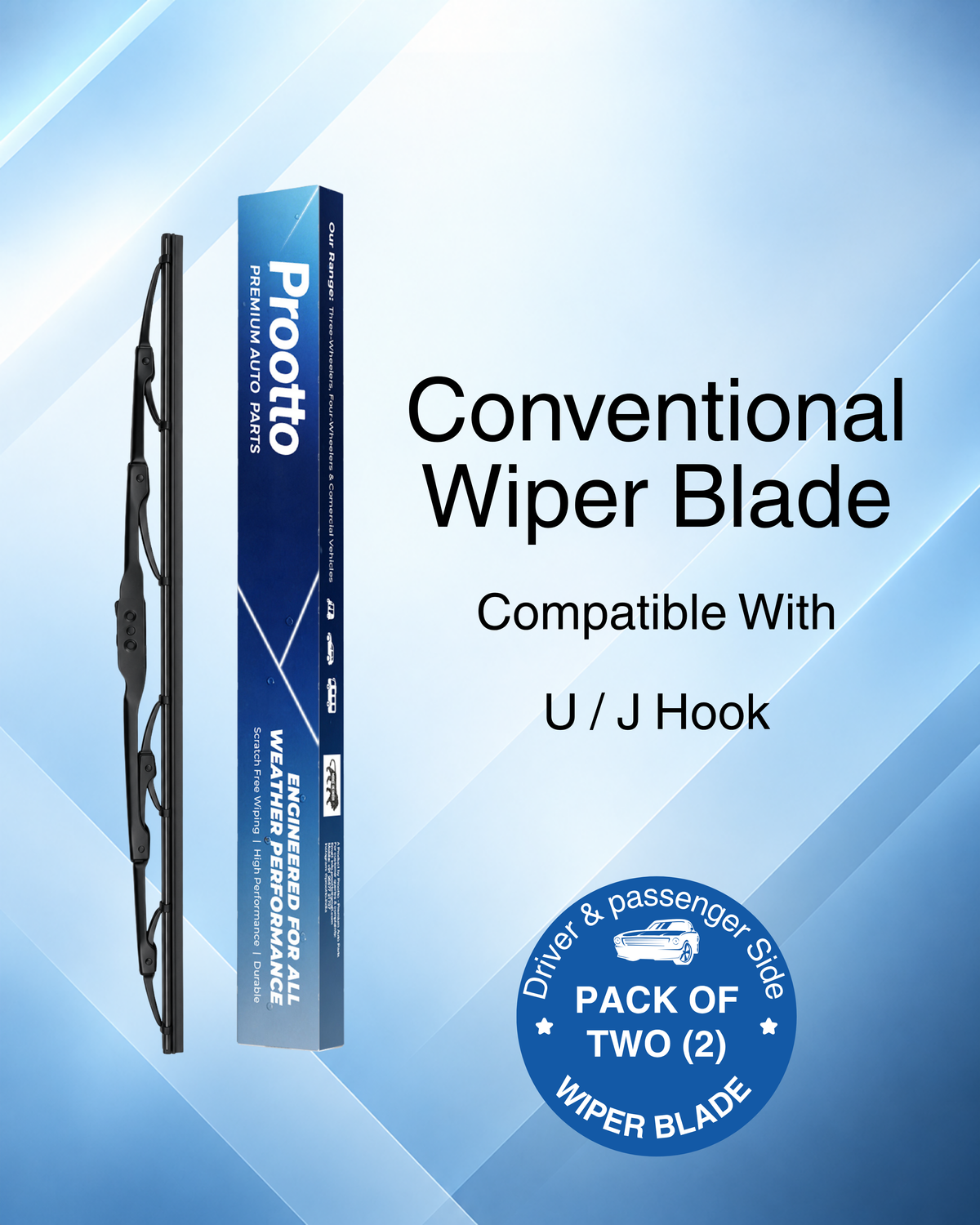

Prootto sells exact-fit sets of two in Conventional, Hybrid, Frameless and Carbon Aero:
FAQs
What is the wiper blade size of the Isuzu D-Max Single Cab?
D-Max Single Cab (2014–present): 22" + 19" (550 mm + 480 mm).
Is the wiper size the same for every D-Max Single Cab variant?
Yes. Within a generation, Flat Deck, Cab Chassis and all other variants use the same 22" + 19" blades.
Do these fit the D-Max Single Cab wiper arm?
Yes – the D-Max Single Cab uses a standard U-hook (J-hook) arm, and Prootto blades come with the matching adapter.
